OLED Displays

Add to Quote
ASI-O-09112832ES-PT-EBS/M
ASI-O-04274AWWWI0/V

ASI-O-04274AWWWI0/V  is a .42 inch OLED, with a 72 x 40 resolution, white color.

PRODUCTS SPECS
Size (Inch) 0.42
Resolution 72 x 40
Luminance/Contrast 430 Nits;  2000:1
Colors Monochrome White
Module Size 12.0 x 11.0 x 1.25
Active Area 9.196 x 5.18
Interface 4-wire SPI, I2C
PDF
Add to Quote
ASI-O-09112832ES-PT-EBS/M
ASI-O-063122AWWWG0/V

ASI-O-063122AWWWG0/V  is a .63 inch OLED, with a 120 x 28 resolution, white color.

PRODUCTS SPECS
Size (Inch) 0.63
Resolution 120 x 28
Luminance/Contrast 270 Nits;  2000:1
Colors Monochrome White
Module Size 21.54 x 6.62 x 1.22
Active Area 15.58 x 3.62
Interface I2C
PDF
Add to Quote
ASI-O-095BAWWW10/M
ASI-O-095BAWWW10/M
ASI-O-095BAWWW10/M is a 0.95 inch OLED, with a 96 x 64 resolution, white color.
PRODUCTS SPECS
Size (Inch) 0.95
Resolution 96 x 64
Luminance/Contrast 80 Nits; 100:1
Colors White
Module Size

24.9 x 22.95 x 1.4
Active Area 19.953 x 13.424
Interface 8 BIT PARALLEL,4SPI,I2C
PDF
Add to Quote

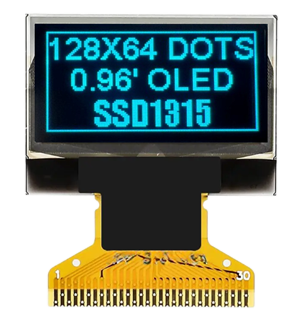

ASI-O-096FALLL60/V
ASI-O-096FALLL60/V

ASI-O-096FALLL60/V is a 0.96 inch OLED, with a 128 x 64 resolution, Blue color.

PRODUCTS SPECS
Size (Inch) 0.96
Resolution 128 x 64
Luminance/Contrast 50 Nits; 2000:1
Colors Blue
Module Size 24.7 x 16.6 x 1.3
Active Area 21.74 x 11.175
Interface 8-bit 68XX/80XX Parallel, 3-/4-wire SPI, I2C
PDF
Add to Quote
ASI-O-104DAWWH10/M
ASI-O-104DAWWH10/M
ASI-O-104DAWWH10/M is a 1.04 inch OLED, with a 128 x 32 resolution; white color.
PRODUCTS SPECS
Size (Inch) 1.04
Resolution 128 x 32
Luminance/Contrast 120 Nits , 2000:1
Colors White
Module Size

29.8 x 14.5 x 1.3
Active Area 25.58 x 6.38
Interface 8-bit parallel,3-/4-wire SPI,I2C
PDF
Add to Quote
ASI-O-110CAFFF10/M
ASI-O-110CAFFF10/M
ASI-O-110CAFFF10/M is a 1.1 inch OLED with a 96 x 96 resolution; full color.
PRODUCTS SPECS
Size (Inch) 1.1
Resolution 96 x 96
Luminance/Contrast 100 Nits: 10000:1
Colors Full Color
Module Size 25.9 x 30.1 x 1.3
Active Area 19.852 x 19.852
Interface 8 BIT,6800/ 8080 Parallel,4-wire SPI
PDF
Add to Quote
ASI-O-110EAWWH40/M
ASI-O-110EAWWH40/M
ASI-O-110EAWWH40/M is a 1.1 inch OLED with a 128 x 36 resolution; white color
PRODUCTS SPECS
Size (Inch) 1.1
Resolution 128 x 36
Luminance/Contrast 120 Nits, 2000:1
Colors White
Module Size

31.0 x 14.3 x 1.0
Active Area 26.86 x 7.54
Interface 8-bit 6800,8-bit 8080,I2C,4-wire SPI
PDF
Add to Quote
ASI-O-129MAFFF80/M
ASI-O-129MAFFF80/M
ASI-O-129MAFFF80/M is a 1.29 inch OLED with a 128 x 96 resolution, 65K/262K full color.
PRODUCTS SPECS
Size (Inch) 1.29
Resolution 128 x 96
Luminance/Contrast 90 Nits; 2000:1
Colors 65K/262K Full Color
Module Size 33.0 x 25.8 x 1.21
Active Area 26.279 x 19.708
Interface 8/16/18-bit 6800/8080-series parallel,SPI
PDF
Add to Quote
ASI-O-130FAWWHD0/M
ASI-O-130FAWWHD0/M
ASI-O-130FAWWHD0/M is a 1.3 inch OLED, with a 128 x 64 resolution, White color.
PRODUCTS SPECS
Size (Inch) 1.3
Resolution 128 x 64
Luminance/Contrast 100 Nits: 10000:1
Colors White
Module Size 34.5 x 23.0 x 1.45
Active Area

29.42 x 14.7
Interface 8 bit 8080,6800 Parallel, 3-4SPI, I2C
PDF
Add to Quote
ASI-O-145HAEEE90/M
ASI-O-145HAEEE90/M
ASI-O-145HAEEE90/M is a 1.45 inch OLED, with a 160 x 128 resolution, 262K Full Color
PRODUCTS SPECS
Size (Inch) 1.45
Resolution 160 x 128
Luminance/Contrast 100 Nits; 2000:1
Colors 262K Full Color
Module Size

35.8 x 30.80 x 1.6
Active Area 28.78 x 23.04
Interface 8/9bit CPU,6bit RGB,4-wire SPI
PDF
Add to Quote
ASI-O-146GAFFF80/M
ASI-O-146GAFFF80/M
ASI-O-146GAFFF80/M is a 1.46 inch OLED, with a 128 x 128 resolution, 65K/262K Full Color
PRODUCTS SPECS
Size (Inch) 1.46
Resolution 128 x 128
Luminance/Contrast 90 Nits; 2000:1
Colors 65K/262K Full Color
Module Size 33.5 x 33.5 x 1.61
Active Area 26.279 x 26.284
Interface 8/16/18-bit 6800/8080-series parallel, SPI
PDF
Add to Quote
ASI-O-15012812K6-O--IWS/I
ASI-O-15012812K6-O--IWS/I

ASI-O-15012812K6-O--IWS/I is a 1.5 inch OLED, with a 128 x 128 resolution, White color.

PRODUCTS SPECS
Size (Inch) 1.5
Resolution 128 X128
Luminance/Contrast 90 Nits; 2000:1
Colors White
Module Size 33.8 x 36.5 x 1.41
Active Area 26.86 x 26.86
Interface 8 bit 8080,8-bit 6800,SPI,I2C
PDF
Add to Quote
ASI-O-154FAGGGD0/M
ASI-O-154FAGGGD0/M

ASI-O-154FAGGGD0/M is a 1.54 inch OLED with 128 x 64 resolution, monochrome white.

PRODUCTS SPECS
Size (Inch) 1.54
Resolution 128 x 64
Luminance/Contrast 120 Nits, 2000:1
Colors White
Module Size 42.04 x 27.22 x 1.45
Active Area 35.052 X 17.516
Interface 8-bit parallel, 4-wire SPI,I2C
PDF
Add to Quote
ASI-O-169HACCH80/M
ASI-O-169HACCH80/M
ASI-O-169HACCH80/M is a 1.69 inch OLED, with a 160 x 128 resolution,  Full Color
PRODUCTS SPECS
Size (Inch) 1.69
Resolution 160 x 128
Luminance/Contrast 75 Nits; 20000:1
Colors 262K Full Color
Module Size 39.9 x 34.0 x 1.7
Active Area 33.575 x 26.864
Interface 8/9-bit CPU,6bit-RGB,4-wire SPI
PDF

Add to Quote
ASI-O-177HADDH80/M
ASI-O-177HADDH80/M
ASI-O-177HADDH80/M is a 1.77 inch OLED, with a 160 x 128 resolution, 65K/262K Full Color
PRODUCTS SPECS
Size (Inch) 1.77
Resolution 160 x 128
Luminance/Contrast 80 Nits; 2000:1
Colors 65K/262K Full Color
Module Size 42.7 x 33.40 x 2.01
Active Area 35.015 x 28.012
Interface 8 bit 6800, 8080 parallel,4SPI
PDF
Add to Quote
ASI-O-223DAYYHE0/M
ASI-O-223DAYYHE0/M
ASI-O-223DAYYHE0/M is a 2.23 inch OLED, with a 128 x 32 resolution, Yellow color.
PRODUCTS SPECS
Size (Inch) 2.23
Resolution 128 x 32
Luminance/Contrast 120 Nits, 2000:1
Colors Yellow
Module Size

62 x 24 x 2.00
Active Area 55.02 x 13.1
Interface 8 bit 6800, 8080 parallel,4SPI,I2C
PDF
Add to Quote
ASI-O-226KAWWH60/M
ASI-O-226KAWWH60/M
ASI-O-226KAWWH60/M is a 2.26 inch OLED, 16 characters x 2 lines. White color.
PRODUCTS SPECS
Size (Inch) 2.26
Luminance/Contrast 120 Nits, 10000:1
Colors White
Module Size 80.0 x 36.0 x 9.70
Active Area 56.22 x 11.52
Interface 8 bit 6800, parallel
Characters x Lines 16 x 2
PDF
Add to Quote
ASI-O-240FAWWH60/M
ASI-O-240FAWWH60/M
ASI-O-240FAWWH60/M is a 2.42 inch OLED, with a 128 x 64 resolution, white color.
PRODUCTS SPECS
Size (Inch) 2.42
Resolution 128 x 64
Luminance/Contrast 120 Nits, 2000:1
Colors White
Module Size 60.5 x 73.0 x 1.80
Active Area 55.01 x 27.49
Interface 8-bit 68XX/80XX parallel, 4-wire SPI, IIC
PDF
Add to Quote
ASI-O-242FAYYH10/M
ASI-O-242FAYYH10/M
ASI-O-242FAYYH10/M is a 2.42 inch OLED, with a 128 x 64 resolution, Yellow color.
PRODUCTS SPECS
Size (Inch) 2.42
Resolution 128 x 64
Luminance/Contrast 120 Nits, 2000:1
Colors Yellow
Module Size 60.5 x 37.0 x 2.0
Active Area 55.01 x 27.49
Interface 8-bit parallel, 4-wire SPI,I2C
PDF
Add to Quote
ASI-O-270JAWWH70/M
ASI-O-270JAWWH70/M
ASI-O-270JAWWH70/M is a 2.7 inch OLED, with a 256 x 64 resolution, White / 16 gray scales color.
PRODUCTS SPECS
Size (Inch) 2.7
Resolution

256 x 64
Luminance/Contrast

80 Nits; 10000:1
Colors White / 16 gray scales
Module Size

82.0 X 25.50 x 1.5
Active Area

66.53 X 16.61
Interface

Parallel / Serial
PDF

Add to Quote
ASI-O-280JAYYH10/M
ASI-O-280JAYYH10/M
ASI-O-280JAYYH10/M is a 2.8 inch OLED, with a 256 x 64 resolution, Yellow color.
PRODUCTS SPECS
Size (Inch) 2.8
Resolution 256 x 64
Luminance/Contrast 80 Nits; 2000:1
Colors Yellow
Module Size 84.0 x 25.8 x 2.0
Active Area 69.10 x 17.264
Interface 8-bit parallel,4-wire SPI
PDF
Add to Quote
ASI-O-293LAGGGF0/M
ASI-O-293LAGGGF0/M
ASI-O-293LAGGGF0/M is a 2.93 inch OLED, 20 characters x 2 lines. White color.
PRODUCTS SPECS
Size (Inch) 2.93
Luminance/Contrast 120 Nits, 10000:1
Colors White
Module Size 84.5 x 19.28 x 2.0
Active Area 73.52 x 11.52
Interface

4-/8-bit parallel,SPI,I2C
Characters x Lines 20 x 2
PDF
Add to Quote
ASI-O-312JAAAHD0/M
ASI-O-312JAAAHD0/M
ASI-O-312JAAAHDO/M is a 3.12 inch OLED, with a 256 x 64 resolution, Blue color.
PRODUCTS SPECS
Size (Inch) 3.12
Resolution 256 x 64
Luminance/Contrast 80 Nits; 2000:1
Colors

Blue
Module Size

88.0 x 27.8 x 2.0
Active Area 76.78 x 19.18
Interface

8-bit parallel,3/4-wire SPI
PDF
Add to Quote
ASI-O-550JAGGS10/M
ASI-O-550JAGGS10/M
ASI-O-550JAGGS10/M is a 5.5 inch OLED, with a 256 x 64 resolution, Green/16 gray scales color.
PRODUCTS SPECS
Size (Inch) 5.5
Resolution 256 x 64
Luminance/Contrast 80 Nits, 2000:1
Colors Green/16 gray scales
Module Size 146.0 x 45.0 x 2.0
Active Area 135.65 x 33.89
Interface 8-bit parallel,3-4-wire SPI
PDF
