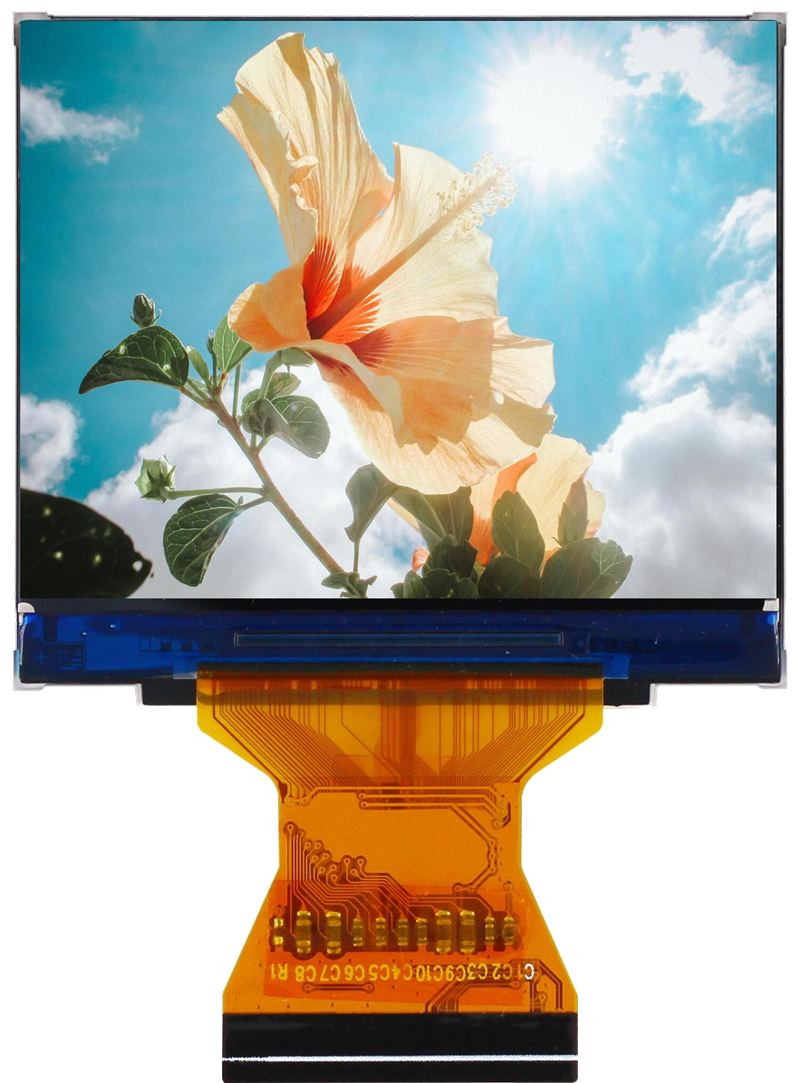

ASI-T-200EA6SRN/D

ASI-T-200EA6SRN/D is a 2.0 inch IPS TFT with a resolution of  320 x 240, SPI or RGB  interface, contrast of 1,500 and a brightness of 620 Nits.

TFT Specifications
Size 2
Resolution 320 X 240
Module Size 46.10 x 40.96 x 2.54
Active Area 40.8 x 30.6
Interface RGB, SPI
Touch Panel None
Brightness/Nits Range 400-699
Brightness/Nits 620
PDF

Polarizer Transmissive
Viewing Direction IPS/All-view
