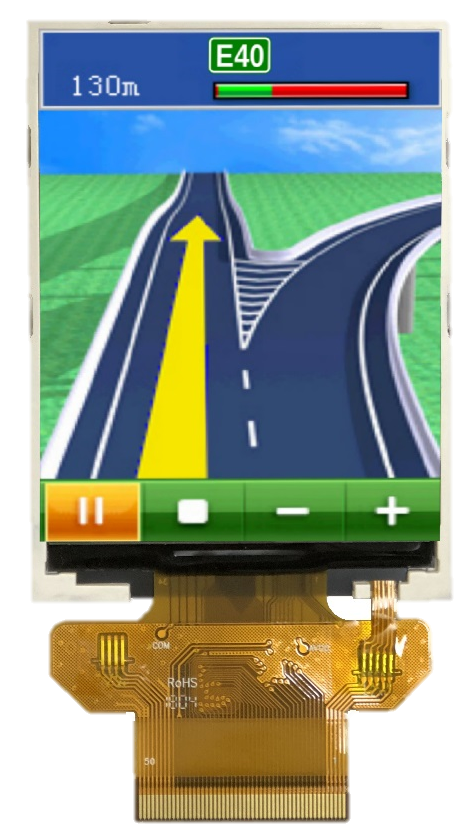

ASI-T-283DAKCRN/A

ASI-T-283DAKCRN/A is a 2.83 inch high brightness TFT with a resolution of 240 x 320, CPU, RGB, SPI  interface and with a brightness of  1000 Nits; viewable in direct sunlight

TFT Specifications
Size 2.83
Resolution 240 x 320
Module Size 50.20 x 69.30 x 2.9
Active Area 43.2 x 57.60
Interface CPU, RGB, SPI
Touch Panel None
Brightness/Nits Range 1000 & up
Brightness/Nits 1000
PDF

Polarizer Transmissive
Viewing Direction 6:00
