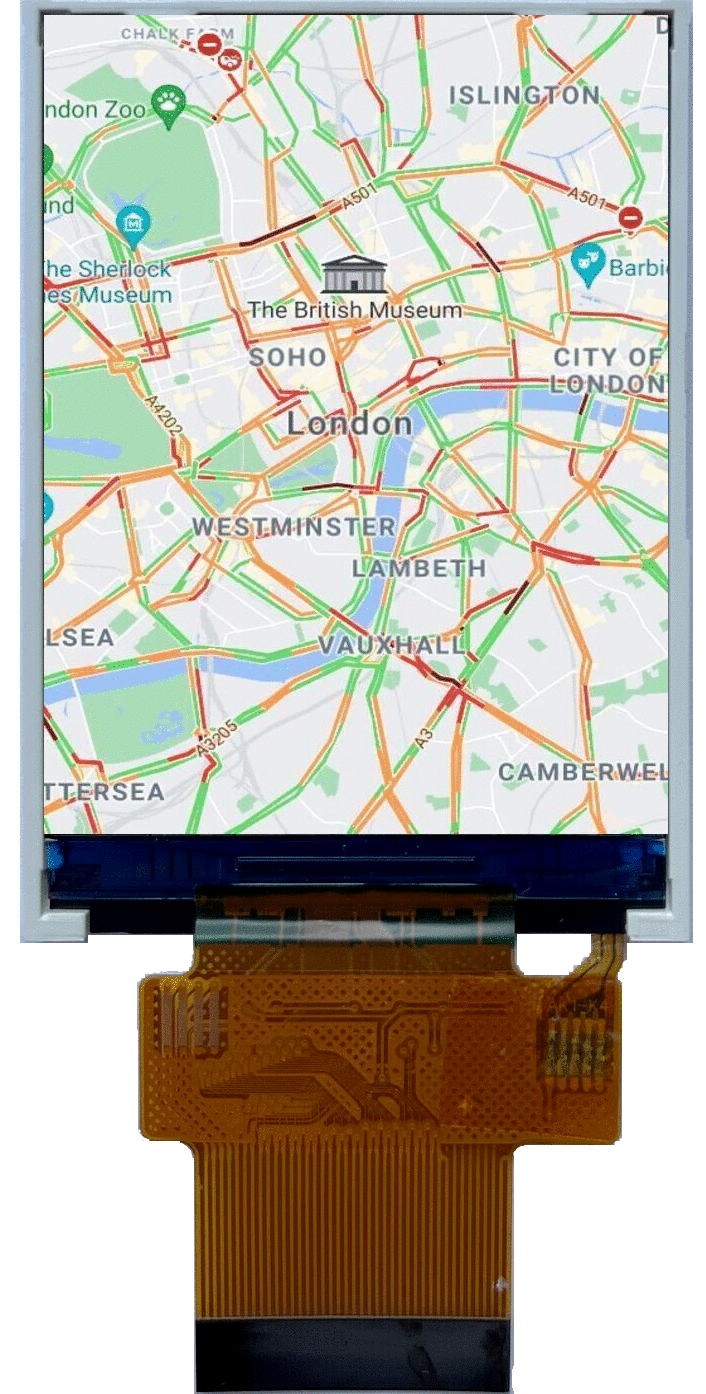

ASI-T-240DA10SMN/AQ

ASI-T-240DA10SMN/AQ is a 2.4 inch high brightness TFT with a resolution of 240 x 320, SPI & MCU interface, IPS all-angle view and with a brightness of 1000 Nits; viewable in direct sunlight.  It also features an extra wide operating temperatures of -30 to +80C; perfect for extreme environmental applications.

TFT Specifications
Size 2.4
Resolution 240 x 320
Module Size 42.72 x 60.26 x 2.20
Active Area 36.72 x 48.96
Interface MCU, SPI
Touch Panel None
Brightness/Nits Range 1000 & up
Brightness/Nits 1000
PDF
Polarizer Transmissive
Viewing Direction IPS/All-view
