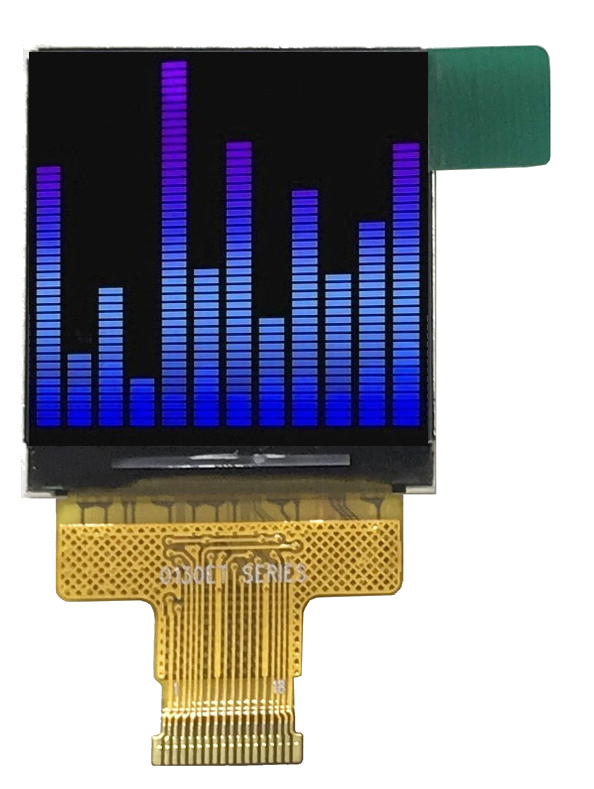

ASI-T-1302A10SPN/A

ASI-T-1302A10SPN/A is a 1.3 inch all-view TFT display with a resolution of 240 x 240,  SPI interface, and a high brightness of 1000 Nits, ideal for outdoor viewing.

TFT Specifications
Size 1.3
Resolution 240 x 240
Module Size 26.16 x 29.1 x 2.3
Active Area 23.40 x 23.40
Interface SPI
Touch Panel None
Brightness/Nits Range 1000 & up
Brightness/Nits 1000
PDF
Polarizer Transmissive
Viewing Direction IPS/All-view
