ASI-O-096FALLL60/V

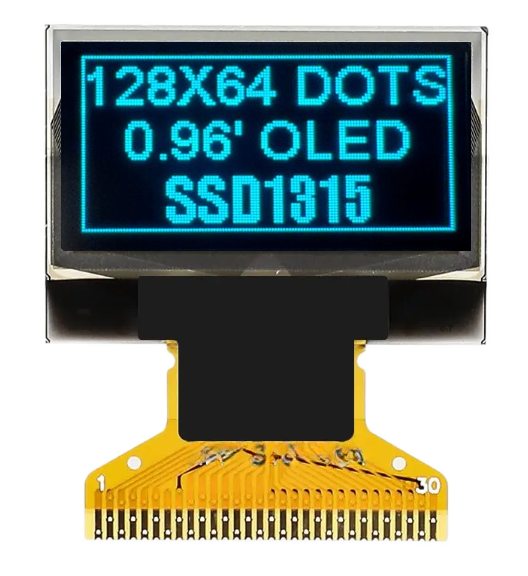

ASI-O-096FALLL60/V is a 0.96 inch OLED, with a 128 x 64 resolution, Blue color.

OLED Display Modules Specifications
Size (Inch) 0.96
Resolution 128 x 64
Luminance/Contrast 50 Nits; 2000:1
Colors Blue
Module Size 24.7 x 16.6 x 1.3
Active Area 21.74 x 11.175
Interface 8-bit 68XX/80XX Parallel, 3-/4-wire SPI, I2C
